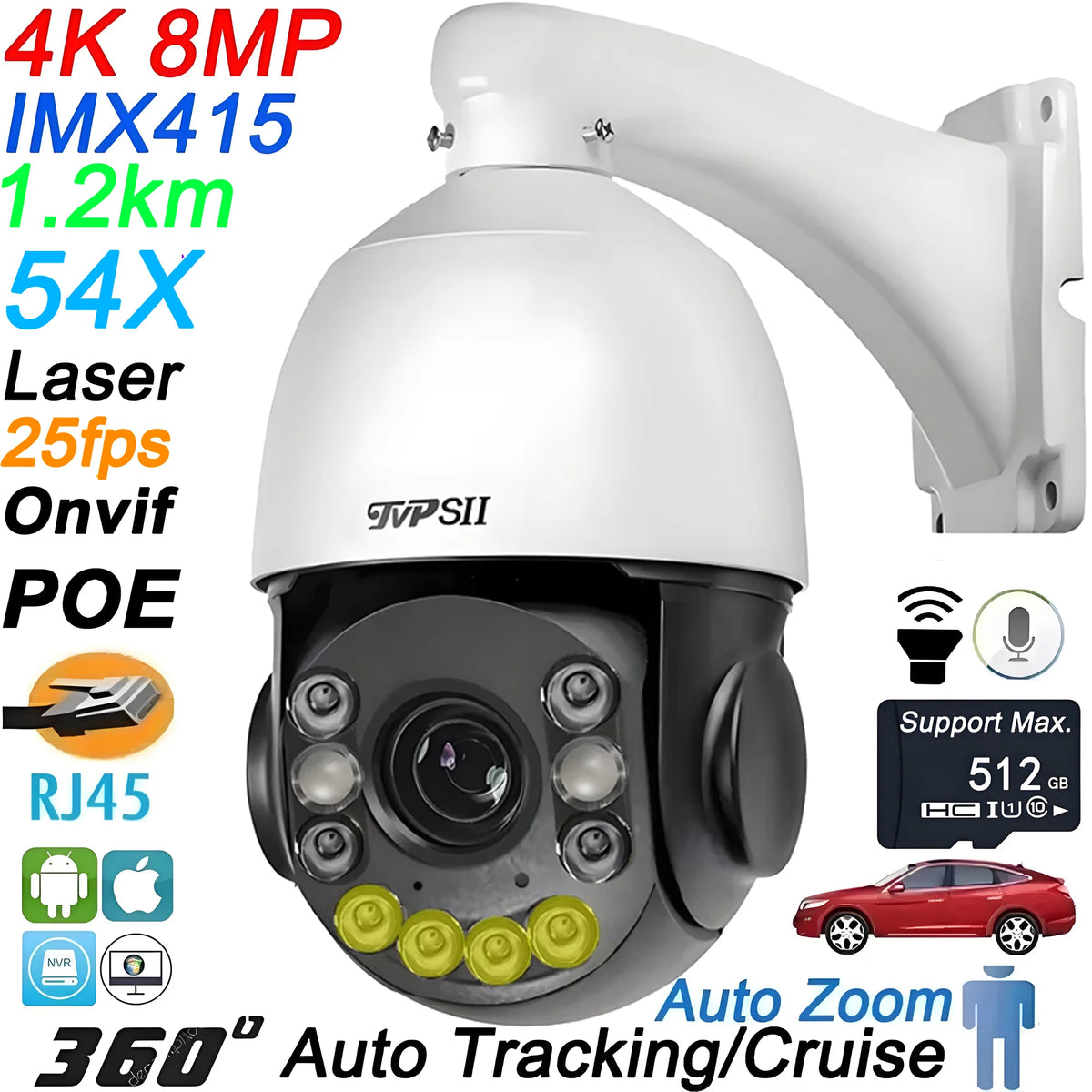

TVPSii 4K Infrared Auto Tracking PTZ Surveillance Camera
TVPSii 4K Infrared Auto Tracking PTZ Surveillance Camera
Couldn't load pickup availability
Keep watch over a wide area with 8MP 4K video, human auto-tracking, and infrared night vision designed for long-range monitoring.
- Clear 4K footage: The Sony IMX415 sensor captures 3840 × 2160 video, and H.265+ compression helps reduce storage use.
- Follow activity: Pan 360° horizontally and 90° vertically, with auto-tracking, auto-cruise, and auto-zoom to keep moving people in view.
- Pick your infrared range: The 54X version reaches 150–200 m; the 90X version reaches 300–400 m, and both offer optical zoom.

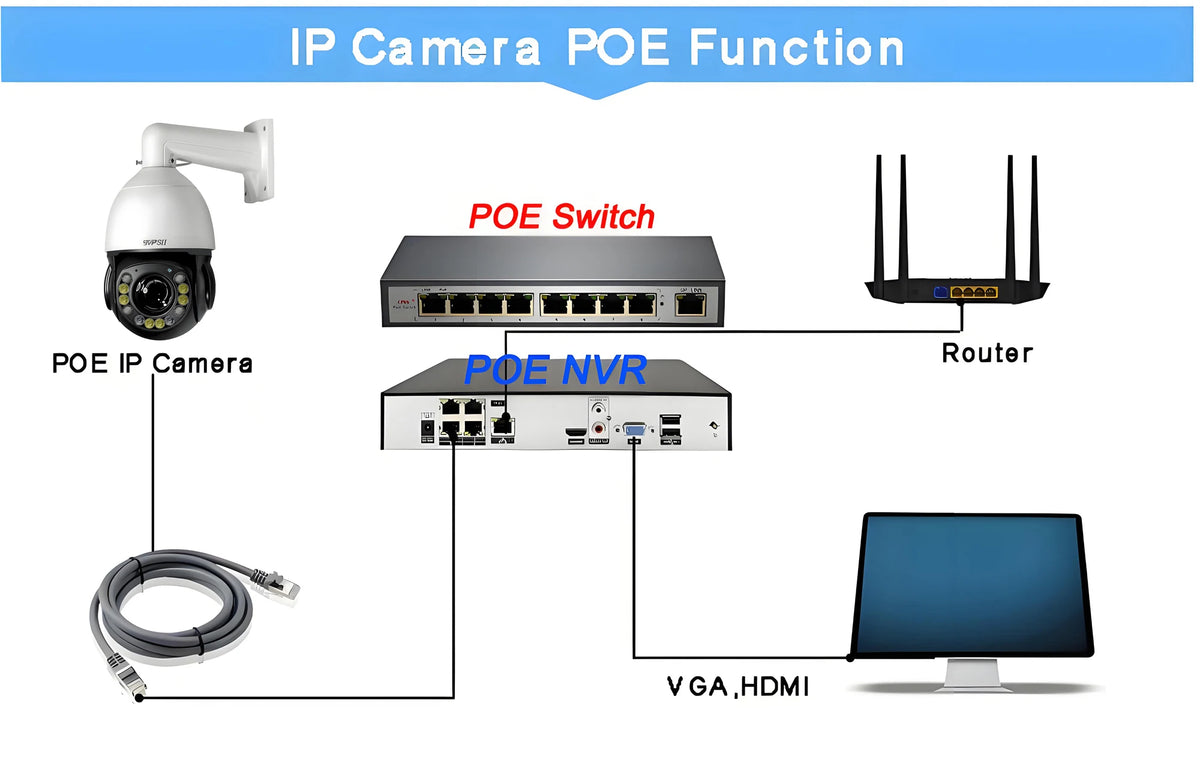

- Flexible setup: Use PoE or 12V DC power, view footage through the iOS or Android app, PC, or compatible Onvif NVR, and add an SD card up to 512GB.
Resolution |
8MP 4K |
|||
system structure |
Mstar338Q |
|||
CMOS Sensor |
4K 8MP 1/2.8" Sony IMX415 |
|||
Min illumination |
Low illumination 0.001Lux |
|||
Video processing |
H.265AI / H.265 + (compatible with H.265 / H.264) encoding, dual stream, AVI format |
|||
Image output |
8MP 3840*2160@20fps |
|||
Shutter |
1/50 (1/60) seconds to 1/10000 seconds |
|||
Infrared Led Light |
54X:4pcs infrared Led+2pcs Laser led+4pcs Warm Led 90X:6pcs Warm Led+4pcs laser Led+2pcs Infared Led |
|||
IR Distance |
90X(300m-400m)/150m-200m(54X) |
|||
Conversion mode |
Day and night conversion mode |
|||
Noise reduction |
Support 2D/3D noise reduction |
|||
Wide dynamic |
digital wide dynamics |
|||
Network Interface |
1*RJ45 network interface, 10/100M adaptive |
|||
Reliability |
Comprehensive lightning protection, in line with national and international standards; 7 * 24 hours -50 ℃ ～ 65 ℃ test is stable and reliable |
|||
Cruise settings |
Support(Fixed-point cruise, cruise between two points,360° cruise,......) |
|||
Human auto tracking |
Support |
|||
SD Card |
Support(Max:512G) |
|||
POE Function |
Support |
|||
Network protocol |
TCP/IP,UDP,RTP,RTSP,RTCP,HTTP,DNS,DDNS,DHCP,FTP,NTP,PPPOE,SMTP,UPNP,RTMP |
|||
Presets |
255 |
|||
Optical focus |
90X/54X |
|||
Protocol |
Hikvision,Dahua,Onvif |
|||
Rotation |
90 degrees vertical,360 degrees horizontal |
|||
Water resistance |
IP66 |
|||
Work Temperature |
-50°C ~ +60°C |
|||
Weight |
1.95kg(54X)/3.5kg(90X) |
|||
Phone monitoring |
Videolink |
|||
Power Supply |
Power by POE |
|||
